| ASME A112.14.3 (Tested) Flow Rate |
75 GPM (4.73 l/s) |
| Grease Retention Capacity |
405 Pounds (183 Kg)
|
| Material |
Rotationally Molded Polyethylene |
| Product Weight |
91 Pounds (42 Kg) |

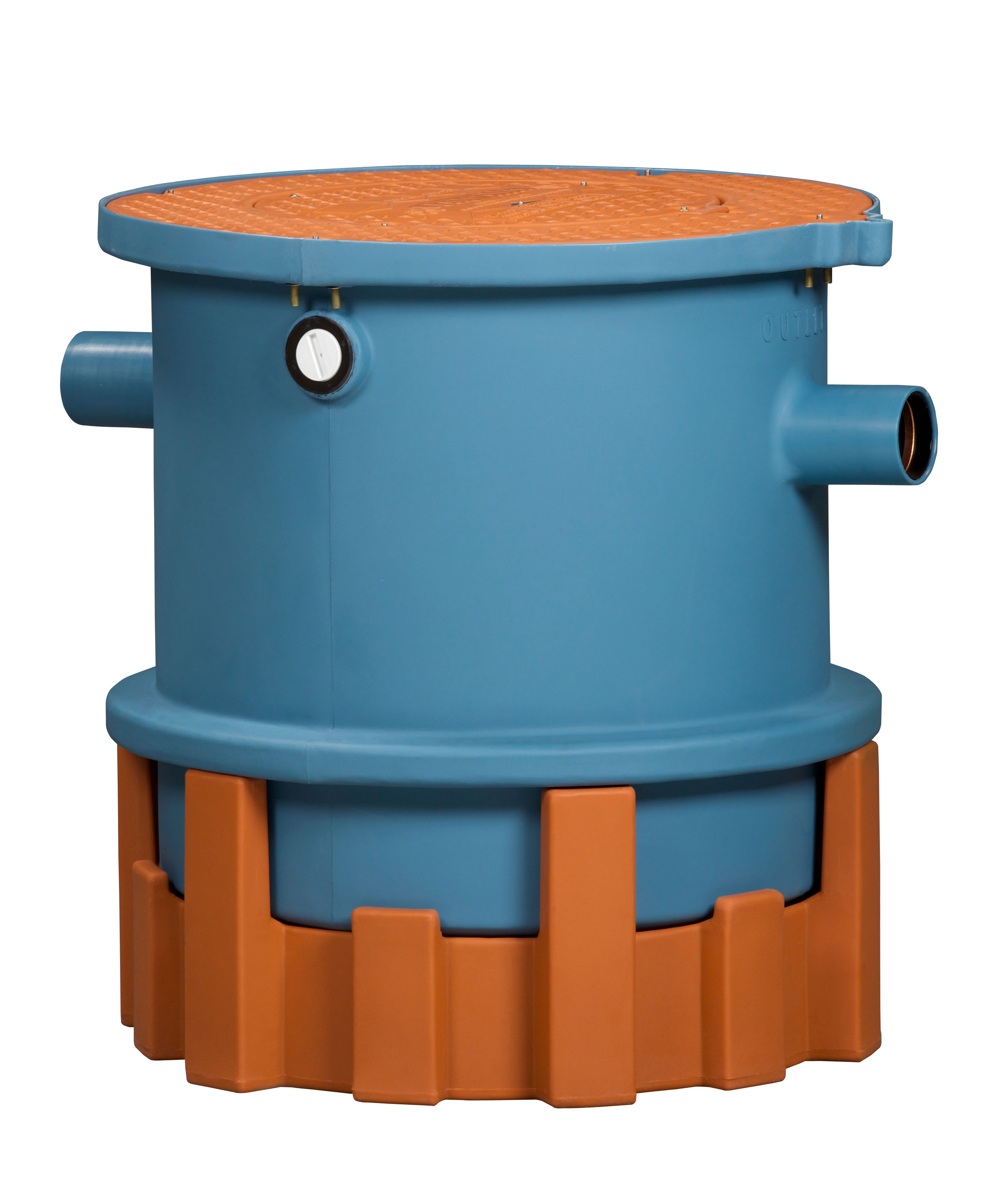

Thermaco Trapzilla Model No. TZ-400-SSA, linear low-density rotationally molded polyethylene grease and oil separator(s) for above-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable lid for access by grease pump truck for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow di- verter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
Unit may also be listed as TZ400 or TZ400SSA
