Trapzilla TZ-525

TZ-525 TRAPZILLA99 GREASE INTERCEPTOR

For in-ground installation

The TZ-525 is the first grease interceptor engineered for 99% grease removal. The best protection against grease blockages. The TZ-525 Trapzilla99 Grease Interceptor is ASME rated for 50 GPM (3.15 l/s) and holds more than 525 pounds (71 Gallons) of grease in a 95 Gallon footprint. Perfect for replacing failing steel or concrete, the TZ-525 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. 99% Efficiency - Miami-Dade DERM Approved.

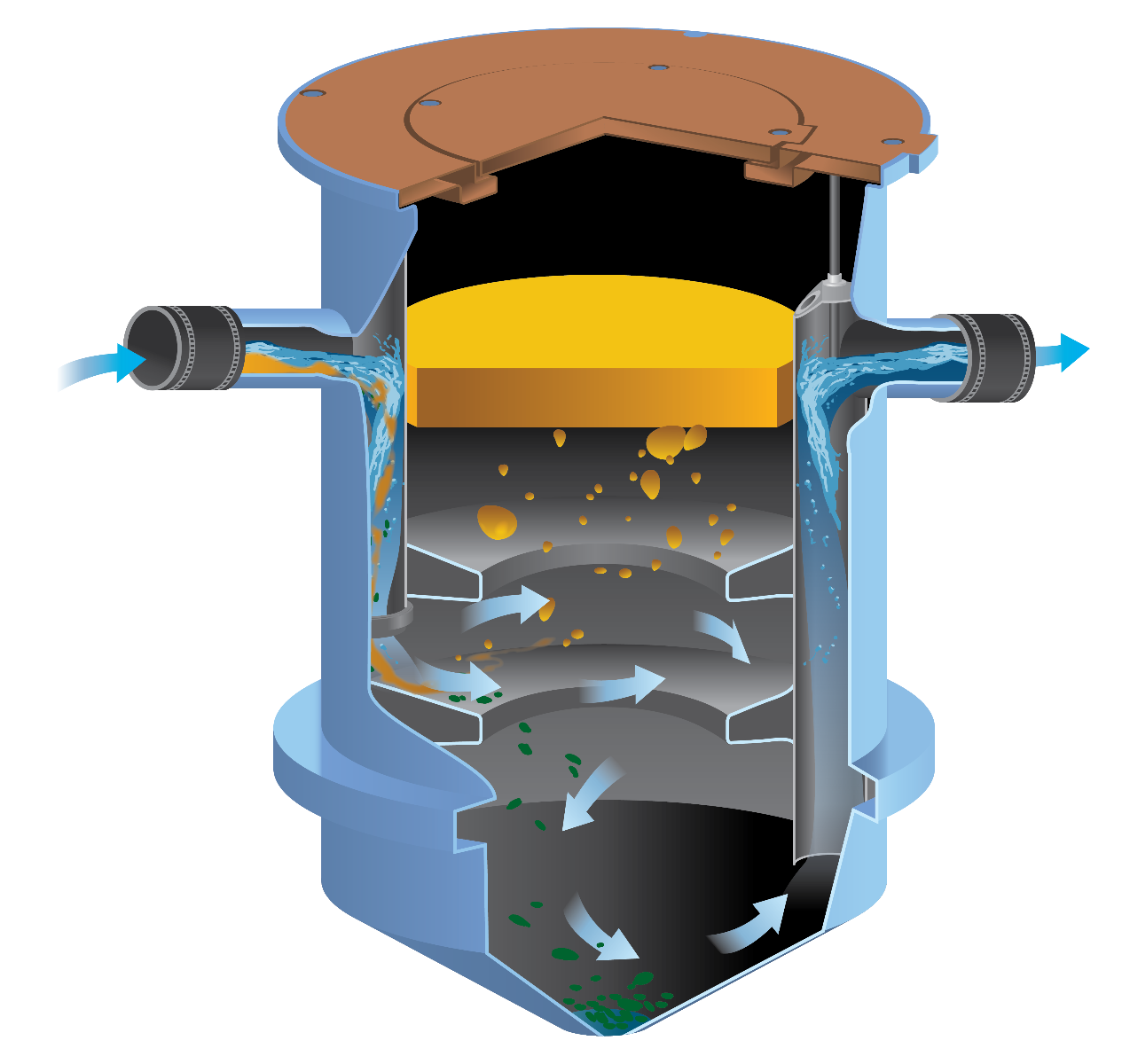

Aqua Mundus Trapzilla99 Model TZ-525 is a rotationally molded polyethylene grease interceptor for above or below ground installation. The TZ-525 has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

  • Removable cover for ease of maintenance
  • Built-in anti-flotation anchor ring for in-ground installation
  • Integral horizontal baffle to minimize turblence as new flows enter the unit
  • Laminar inlet flow diverter to slow the flow of water down
  • Integral vessel vent to regulate pressure inside unit
  • Separate storage compartments for grease and heavier than water solids
  • Sloping conical bottom for solids retention
  • Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
  • Integral sewer gas trap

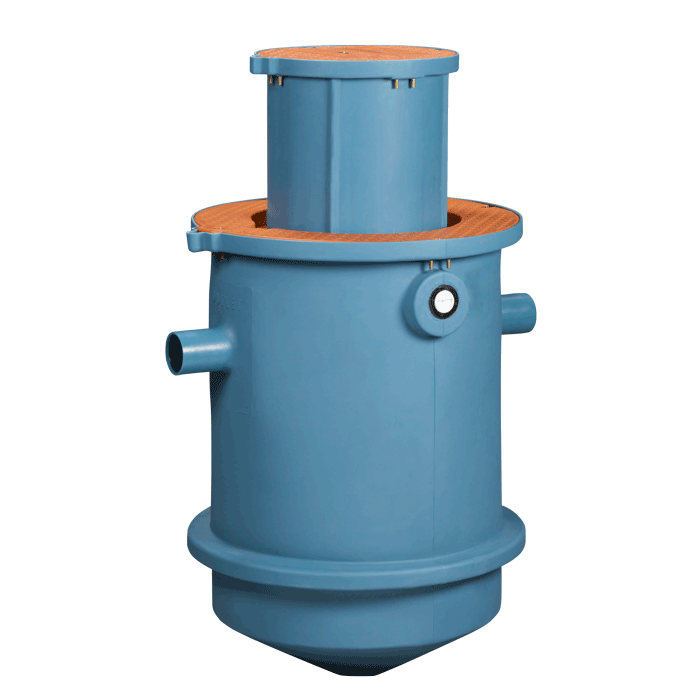

TZ-525-ECA TRAPZILLA99 GREASE INTERCEPTOR

For in ground installation, up to 18" deep  (457mm)​​​​​​​

Aqua Mundus Trapzilla99 Model TZ-525-ECA is a rotationally molded polyethylene grease interceptor for below ground installation. This model comes with an adjustable extension collar/riser up to 18"  ​​​​​​​(457mm). Additional riser can be purchased (SKU: ECA-TZ-29). The TZ-525-ECA has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

  • Adjustable extension collar/riser up to 18" ​​​​​​​(457mm)  (additional riser can be purchased, SKU: ECA-TZ-29)

  • Removable cover for ease of maintenance
  • Built-in anti-flotation anchor ring for in-ground installation
  • Integral horizontal baffle to minimize turblence as new flows enter the unit
  • Laminar inlet flow diverter to slow the flow of water down
  • Integral vessel vent to regulate pressure inside unit
  • Separate storage compartments for grease and heavier than water solids
  • Sloping conical bottom for solids retention
  • Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
  • Integral sewer gas trap

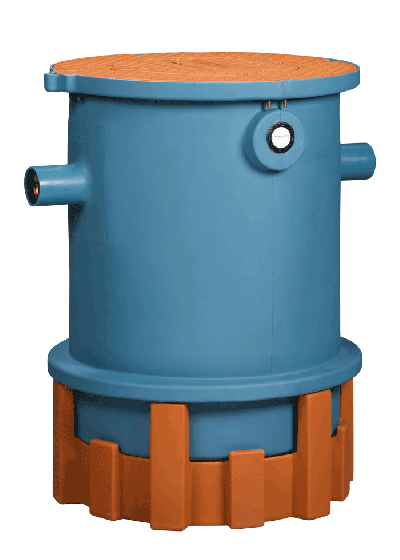

TZ-525-SSA TRAPZILLA99 GREASE INTERCEPTOR

Comes with a support stand for above-ground installations

Aqua Mundus Trapzilla99 Model TZ-525-SSA is a rotationally molded polyethylene grease interceptor for below ground installation. This model comes with a support stand, allowing the unit to sit on the ground. The TZ-525-SSA has a 99% grease separation rating at 50 GPM (3.15 l/s) with 525 lbs (238.1 Kg, 71.9 gal, 272.2 l) of total grease storage capacity.

Key Features:

  • Comes with a support stand, allowing the unit to sit on the ground
  • Removable cover for ease of maintenance
  • Built-in anti-flotation anchor ring for in-ground installation
  • Integral horizontal baffle to minimize turblence as new flows enter the unit
  • Laminar inlet flow diverter to slow the flow of water down
  • Integral vessel vent to regulate pressure inside unit
  • Separate storage compartments for grease and heavier than water solids
  • Sloping conical bottom for solids retention
  • Single tank construction with an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points
  • Integral sewer gas trap
