Trapzilla TZ-600

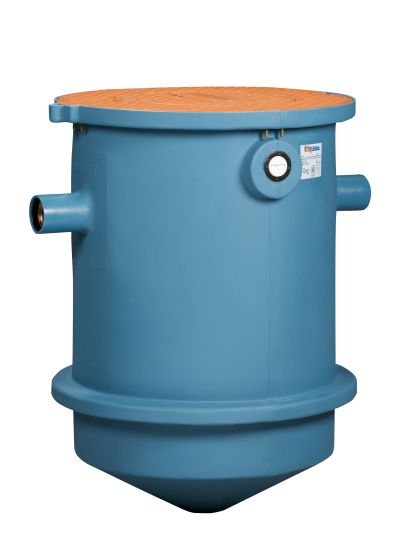

TZ-600 TRAPZILLA GREASE INTERCEPTOR

For in-ground installation

The TZ-600 Trapzilla Grease Interceptor is ASME rated for 75 GPM (4.73 l/s) and holds more than 635 pounds (86 Gallons) of grease in a 95 Gallon footprint. This means that unlike traditional interceptor designs, the TZ-600 is capable of holding more than 91% of its internal volume in grease and solids before it begins to lose efficiency. Perfect for replacing failing steel or concrete, the TZ-600 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The basic models come with a Standard Adapter Ring lid and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease.

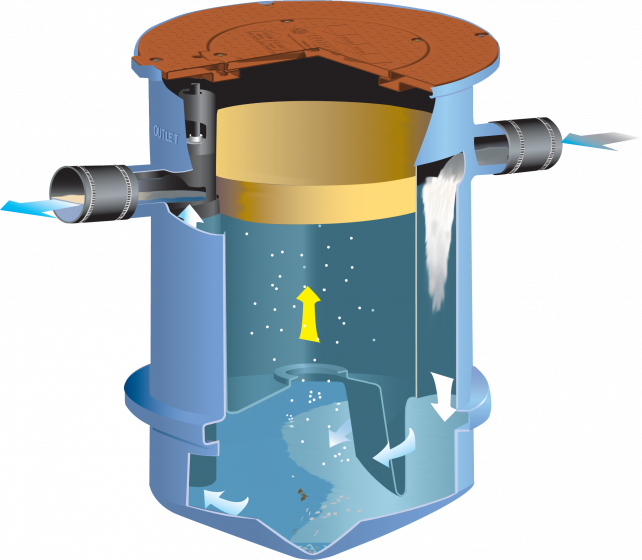

Aqua Mundus Trapzilla Model No. TZ-600, rotationally molded polyethylene grease interceptor(s) for above or below ground installation, shall be rated at 75 GPM (4.73 l/s) with 86.6 gal. (327.8 l) / 635.6 lbs. (288.3 Kg) of total grease storage capacity with flat separation efficiency curve capable of holding 91% of volume in free-floating fats, oils, and grease at capacity, with removable cover for grease and solids removal access, integral anti-flotation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and heavier than water solids, a unitary tank body and 6” (152 mm) inlet/outlet structures without gasket interfaces, utilizing an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points, sloping conical bottom for solids retention, integral sewer gas trap, and a fully removable polyethylene self-positioning cover with sealed thread fasteners.

Key Features:

  • Constructed of corrosion-resistant, linear low-density polyethylene suitable for installation in virtually any location
  • Supercapacity
  • Compact footprint
  • High Separation Efficiency
  • Optional modules for installation as floor standing unit or recessed and hung below floor

TZ-600-6 TRAPZILLA GREASE INTERCEPTOR WITH 6" (152mm) INLET/OUTLET

For in-ground installation

Aqua Mundus Trapzilla Model No. TZ-600-6 with 6" Inlet/Outlet, rotationally molded polyethylene grease interceptor(s) for above or below ground installation, shall be rated at 75 GPM (4.73 l/s) with 86.6 gal. (327.8 l) / 635.6 lbs. (288.3 Kg) of total grease storage capacity with flat separation efficiency curve capable of holding 91% of volume in free-floating fats, oils, and grease at capacity, with removable cover for grease and solids removal access, integral anti-flotation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and heavier than water solids, a unitary tank body and 6” (152 mm) inlet/outlet structures without gasket interfaces, utilizing an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points, sloping conical bottom for solids retention, integral sewer gas trap, and a fully removable polyethylene self-positioning cover with sealed thread fasteners.

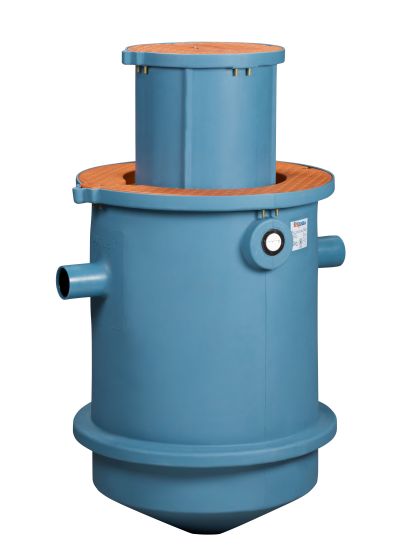

TZ-600-ECA TRAPZILLA GREASE INTERCEPTOR

For in ground installation, up to 18" deep  (457mm)

Aqua Mundus Trapzilla Model No. TZ-600-ECA, rotationally molded polyethylene grease interceptor(s) for above or below ground installation, shall be rated at 75 GPM (4.73 l/s) with 86.6 gal. (327.8 l) / 635.6 lbs. (288.3 Kg) of total grease storage capacity with flat separation efficiency curve capable of holding 91% of volume in free-floating fats, oils, and grease at capacity, with removable cover for grease and solids removal access, integral anti-flotation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and heavier than water solids, a unitary tank body and 4” (101 mm) inlet/outlet structures without gasket interfaces, utilizing an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points, sloping conical bottom for solids retention, integral sewer gas trap, and a fully removable polyethylene self-positioning cover with sealed thread fasteners. Includes one extension collar assembly, linear low-density rotationally molded polyethylene for field adjustability to optimal installation depth.

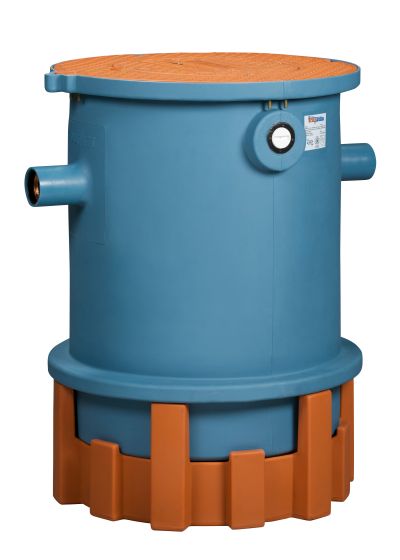

TZ-600-SSA TRAPZILLA GREASE INTERCEPTOR

Comes with a support stand for above-ground installations ​​​​​​​

Aqua Mundus Trapzilla Model No. TZ-600-SSA, rotationally molded polyethylene grease interceptor(s) for above or below ground installation, shall be rated at 75 GPM (4.73 l/s) with 86.6 gal. (327.8 l) / 635.6 lbs. (288.3 Kg) of total grease storage capacity with flat separation efficiency curve capable of holding 91% of volume in free-floating fats, oils, and grease at capacity, with removable cover for grease and solids removal access, integral anti-flotation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, integral vessel vent, separate storage compartments for grease and heavier than water solids, a unitary tank body and 4” (101 mm) inlet/outlet structures without gasket interfaces, utilizing an interior radial compression ring conjoining invert to tank outlet/inlet structures without bulkhead fittings and/or gaskets, invert top and bottom secured attachment points, sloping conical bottom for solids retention, integral sewer gas trap, and a fully removable polyethylene self-positioning cover with sealed thread fasteners. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
