Trapzilla TSS-27

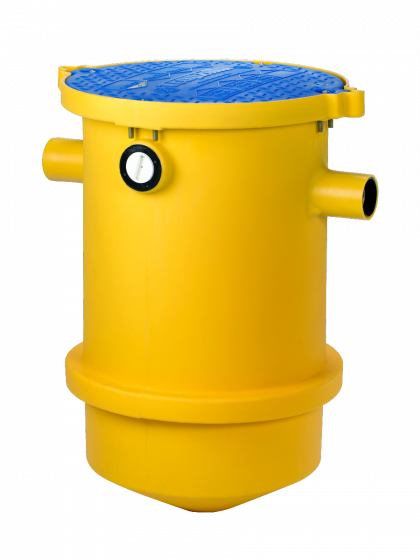

TSS-27 TRAPZILLA SOLIDS SEPARATOR

For in-ground installation

The TSS-27 Trapzilla Solids Separator is rated for 35 GPM (2.21 l/s), and holds 27 Gallons (102.2 liters) of solids in a compact footprint. Ideally, a TSS-27 Trapzilla Solids Separator would be installed in conjunction with a TZ-160 Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  TSS-27 Trapzilla Solids Separator Models come with a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-27, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 35 gallons per minute (2.21 l/s) peak flow, 27 gallons (102.2 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

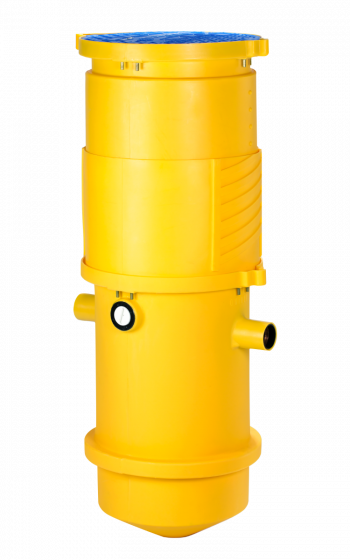

TSS-27-ECA TRAPZILLA SOLIDS SEPARATOR

For in ground installation, up to 18" deep (457mm)

The TSS-27 Trapzilla Solids Separator is rated for 35 GPM (2.21 l/s), and holds 27 Gallons (102.2 liters) of solids in a compact footprint. Ideally, a TSS-27-ECA Trapzilla Solids Separator would be installed in conjunction with a TZ-160-ECA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  TSS-27-ECA Trapzilla Solids Separator Models come with a ECA-TSS-29 extension collar assembly and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-27-SSA, rotationally molded polyethylene solids separator(s) for above-ground installation, rated at 35 gallons per minute (2.21 l/s) peak flow, 27 gallons (102.2 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Includes one ECA-TSS-29 extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

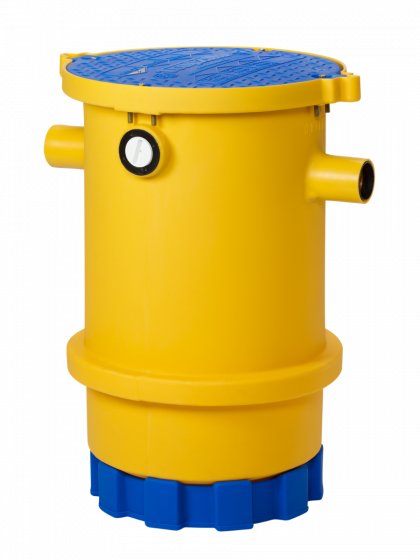

TSS-27-SSA TRAPZILLA SOLIDS SEPARATOR

Comes with a support stand for above-ground installations

The TSS-27 Trapzilla Solids Separator is rated for 35 GPM (2.21 l/s), and holds 27 Gallons (102.2 liters) of solids in a compact footprint. Ideally, a TSS-27-SSA Trapzilla Solids Separator would be installed in conjunction with a TZ-160-SSA Trapzilla Grease Interceptor, effectively removing solids and permitting the grease interceptor to operate at maximum efficiency.  TSS-27-SSA Trapzilla Solids Separator Models come with a SSA-27 Support Stand and a 22" Solid Top Cover that can be removed easily to clean out retained solids.

Aqua Mundus Trapzilla Model No. TSS-27-SSA, rotationally molded polyethylene solids separator(s) for above-ground installation, rated at 35 gallons per minute (2.21 l/s) peak flow, 27 gallons (102.2 l) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
