Trapzilla TZ-160

TZ-160 TRAPZILLA GREASE INTERCEPTOR

For in-ground installation

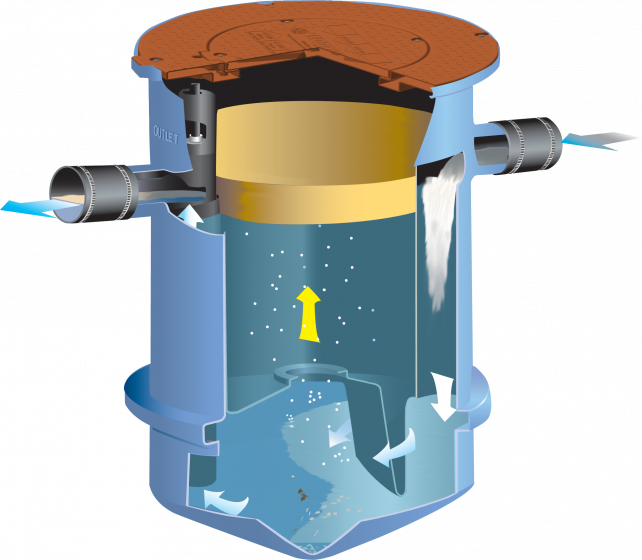

The TZ-160 Trapzilla Grease Interceptor is rated for 35 GPM (2.21 l/s) and holds 167 pounds (21 gallons) of grease in a compact footprint. Perfect for replacing failing steel or concrete interceptors, the TZ-160 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The basic models come with a 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease.

Aqua Mundus Trapzilla TZ-160 Grease Interceptor, rotationally molded polyethylene grease and oil separator for below or above-ground installation, rated at 35 gallons (2.21 l/s) per minute peak flow, 160+ pounds (72.57+ kg) of grease storage capacity, flat grease separation curve, integral portal for access by grease pump truck for grease removal, integral portal for vacuum access for removal of solids, and including as an integral part of the unit a vessel vent, an integral gas trap, a fully removable foam-filled polyethylene cover, and two (2) no-hub connectors for plumbing connection provided.

Key Features

  • Constructed of corrosion-resistant, linear low-density polyethylene suitable for installation in virtually any location
  • Supercapacity
  • Compact footprint
  • High Separation Efficiency
  • Optional modules for installation as floor standing unit or recessed and hung below floor

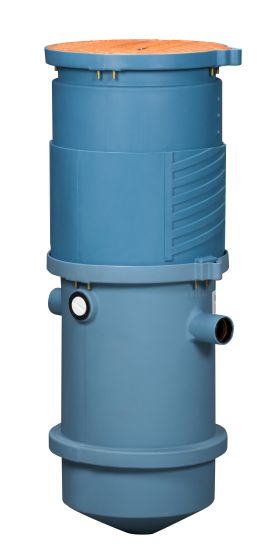

TZ-160-ECA TRAPZILLA GREASE INTERCEPTOR

For in ground installation, up to 18" deep  ​​​​​​​(457mm)

Aqua Mundus Trapzilla Model No. TZ-160-ECA, linear low-density rotationally molded polyethylene grease and oil separator(s) for in-ground installation, shall be ASME A112.14.3 Rated at 35 gallons per minute (2.21 l/s) peak flow, 167 pounds (75 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, removable lid for full access by grease pump truck for grease removal and removal of solids, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fas- teners. Included extension collar manufactured out of linear low-density rotationally molded polyethylene with two piece construction for field adjustable height. The Grease Retention Capacity shall be not less than four pounds (4 lbs.) per one gallon (1 gal.) average flow rate.

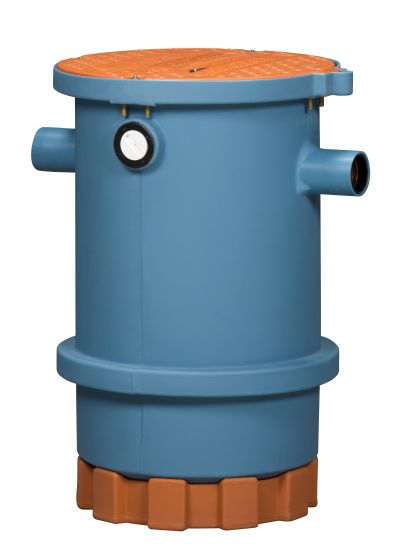

TZ-160-SSA TRAPZILLA GREASE INTERCEPTOR

Comes with a support stand for above-ground installations

Aqua Mundus Trapzilla Model No. TZ-160-SSA, linear low-density rotationally molded polyethylene grease and oil separator(s) for above-ground installation, shall be ASME A112.14.3 Rated at 35 gallons per minute (2.21 l/s) peak flow, 167 pounds (75 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, removable lid for full access by grease pump truck for grease removal and removal of solids, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasten- ers. Included support stand manufactured out of linear low-density rotationally molded polyethylene. The Grease Retention Capacity shall be not less than four pounds (4 lbs.) per one gallon (1 gal.) average flow rate.
