Trapzilla TZ-400

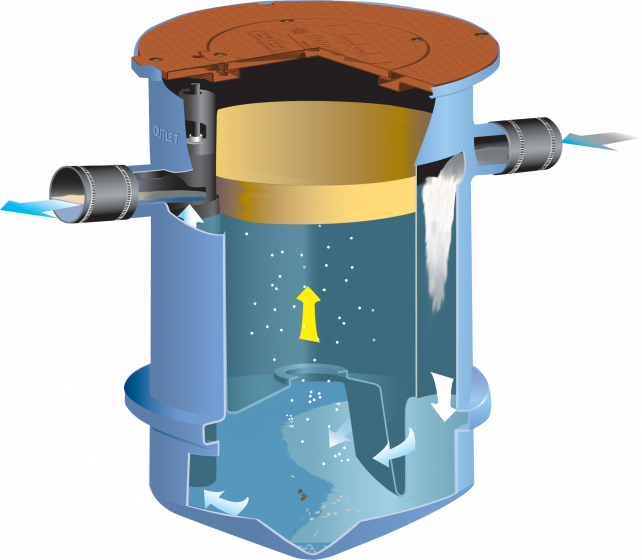

TZ-400 TRAPZILLA GREASE INTERCEPTOR

For in-ground installation

The TZ-400 Trapzilla Grease Interceptor is rated for 75 GPM (4.73 l/s), and holds 405 pounds (54 Gallons) of grease in only a 70 Gallon footprint. Perfect for replacing failing steel or concrete, the TZ-400 is manufactured out of durable polyethylene, meaning that it will outlast traditional interceptors made of inferior materials. The basic models come with a Standard Adapter Ring lid and 22" (558mm) Solid Top Cover that can be removed easily to clean out retained grease.

Aqua Mundus Trapzilla Model No. TZ-400, linear low-density rotationally molded polyethylene grease and oil separator(s) for below or above-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable cover for grease and solids removal, integral non- floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow diverter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners.

Key Features:

  • Constructed of corrosion-resistant, linear low-density polyethylene suitable for installation in virtually any location
  • Supercapacity
  • Compact footprint
  • High Separation Efficiency
  • Optional modules for installation as floor standing unit or recessed and hung below floor

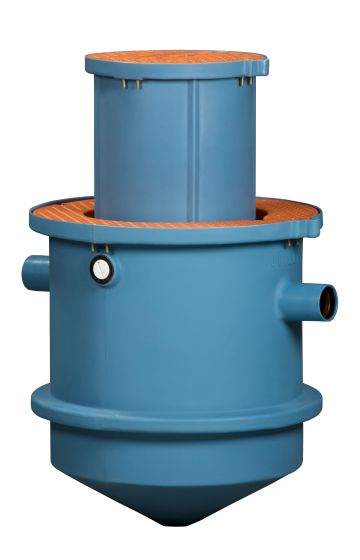

TZ-400-ECA TRAPZILLA GREASE INTERCEPTOR

For in ground installation, up to 18" deep  (457mm)​​​​​​​

Aqua Mundus Trapzilla Model No. TZ-400-ECA, linear low-density rotationally molded polyethylene grease and oil separator(s) for in-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable lid for access by grease pump truck for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow di- verter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

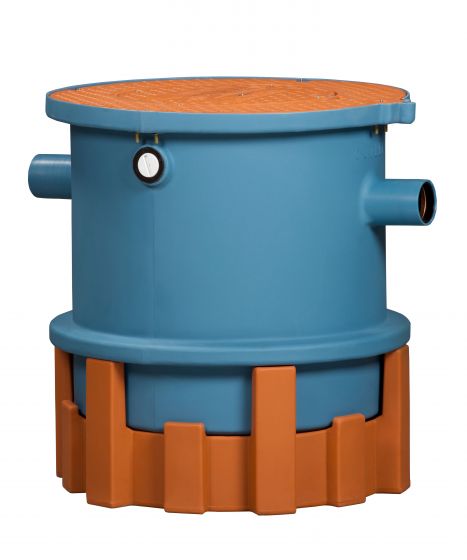

TZ-400-SSA TRAPZILLA GREASE INTERCEPTOR

Comes with a support stand for above-ground installations ​​​​​​​

Aqua Mundus Trapzilla Model No. TZ-400-SSA, linear low-density rotationally molded polyethylene grease and oil separator(s) for above-ground installation, shall be ASME A112.14.3 Rated at 75 gallons (4.73 l/s) per minute peak flow, 405 pounds (183 Kg) of grease storage capacity with a flat grease separation efficiency curve, crush-resistant cylindrical walls, fully removable lid for access by grease pump truck for grease and solids removal, integral non-floatation anchor ring for in-ground installation, integral horizontal baffle, laminar inlet flow di- verter, separate storage compartments for grease and solids, and including as an integral part of the unit an integral gas trap and a fully removable polyethylene self-positioning keyed cover equipped with sealed thread fasteners. Included support stand manufactured out of linear low-density rotationally molded polyethylene.
